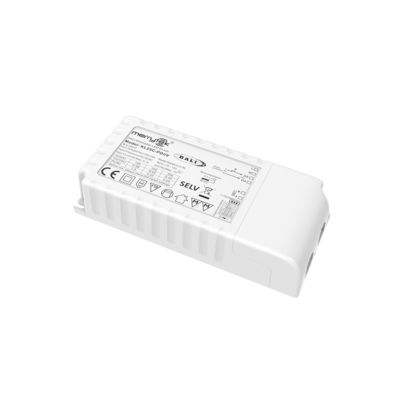

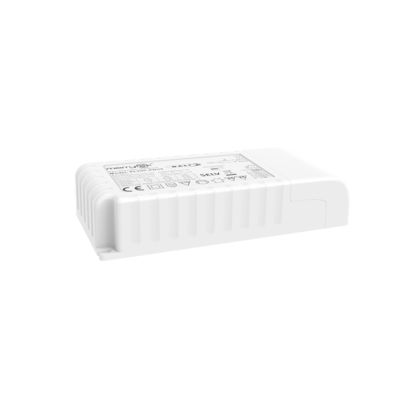

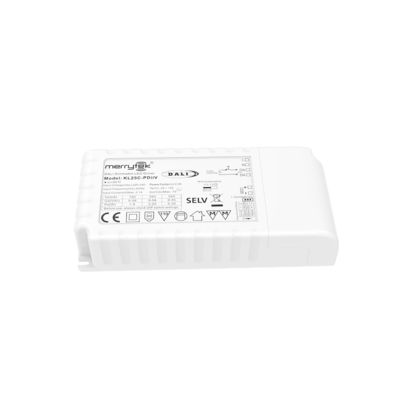

25W CC 150mA to 550mA DALI2 dimmable slim led driver with 5 years warranty

  • 25W CC 150mA to 550mA DALI2 dimmable slim led driver with 5 years warranty
  • 25W CC 150mA to 550mA DALI2 dimmable slim led driver with 5 years warranty
  • 25W CC 150mA to 550mA DALI2 dimmable slim led driver with 5 years warranty
  • 25W CC 150mA to 550mA DALI2 dimmable slim led driver with 5 years warranty
مكان المنشأ الصين
اسم العلامة التجارية Merrytek
إصدار الشهادات CE / RoHS
رقم الموديل KL25C-PDiiV
الحد الأدنى لكمية 100pcs
الأسعار قابل للتفاوض
تفاصيل التغليف معبأة في كيس فقاعي أولاً ، ثم يتم تقويتها بالكرتون للتغليف الخارجي
وقت التسليم 1 ، عينة وطلب صغير: في غضون 5 أيام عمل بعد تلقي الدفع الخاص بك. 2 ، الجزء الأكبر: 3-4 أسابيع بعد است
شروط الدفع T/T أو Western Union
القدرة على العرض 10000 قطعة شهرياً

اتصل بي للحصول على عينات مجانية وكوبونات

واتس اب:0086 18588475571

(وي تشات): 0086 18588475571

سكايب: sales10@aixton.com

إذا كان لديك أي قلق ، فنحن نقدم مساعدة عبر الإنترنت على مدار 24 ساعة.

x
تفاصيل المنتج
الموافقات CE، REACH، ROHS الجهد المقنن 220-240 فولت AC 50Hz / 60Hz
اسم المنتج DALI 2.0 برنامج تشغيل LED قابل لتعديل الضوء طاقة إخراج الحمل الكامل 25 واط ماكس
الجهد الخارجي للحمل 9-58 فولت وضع التعتيم دالي، دفع، 1-10V
درجة حرارة العمل -40 ℃ -80 ℃ تيار الإخراج 150/350/550 مللي أمبير
إبراز

25W DALI2 dimmable LED driver,slim LED driver with warranty,550mA dimmable LED power supply

,

slim LED driver with warranty

,

550mA dimmable LED power supply
اترك رسالة
منتوج وصف
25W CC 150mA to 550mA DALI2 dimmable slim LED driver with 5 years warranty
Product Description
  • Built-in DALI2 protocol, no flicker in full dimming range
  • Primary Push dimming function with state memory
  • Short circuit / over temperature / over voltage protection
  • Standby power consumption ≤ 0.5W
  • 5 years warranty
Specifications
Input
Voltage range 198~264Vac 50Hz/60Hz
Rated supply voltage 220~240Vac 50Hz/60Hz
DC voltage range 200~240Vdc
Input current 0.14A Max.@230Vac
Inrush Current 8A (Half current pulse width 50us) @230VAC
Power factor ≥0.95 (@230Vac, 500mA/45Vdc, 100% load)
Total harmonic distortion Typical: 20% (@230Vac, 100% load)
Stand-by power ≤0.5W
Efficiency(@230Vac,100% load) 86%Max
Wiring method Push terminal, wire cross section:0.75-1.0mm²
Loop-in & Loop-out quantity 30PCS(@230Vac)
Output
Operating mode Constant current
Load type LED
Flickering / Flickering-Free Flickering-Free
Start up time <1s (@230Vac)
Load output voltage range 9-58Vdc
Load output current 150mA(9-58Vdc), 350mA(9-58Vdc), 550mA(9-45Vdc)
Full load output power 25W Max.
No load output voltage 72Vdc Max.
Output current/voltage tolerance ±5%
Wiring method Push terminal, wire cross section:0.75-1.0mm²
Control Method
Primary PUSH Dimming Primary PUSH dimming (Max. lead wire length:20m)
Dimming Range Primary PUSH & DALI dimming: 0%-100%
1-10V dimming:2%-100%
DALI function DALI dimming (Max. lead wire length:300m)
1-10V Dimming 1-10V
Output auxiliary power port 12Vdc, 0.1A Max.
Sensor Dimming port 1-10V
Exception Protection Requirements
Output over temperature protection Yes, reset power on to recover
Output short circuit protection Yes, reset power on to recover
Operating Environment
Operating temperature/humidity -25℃~50℃ Humidity:85% (Non-condensing)
Storage temperature/humidity -40℃~80℃, Humidity:10%-85% (Non-condensing)
Max. case temp(Tc) 85℃
Safety & EMC
EMC standard EN55015, EN61547, EN61000-3-2, EN61000-3-3
DALI standard IEC62386-102, IEC62386-207
Safety standard EN61347-1, EN61347-2-13
Certification CE
Others
Degrees of protection IP20
Type of protection Class I
Installation type Independent installation
Installation dimension 110*50*23.5mm
Memory function Yes, (PUSH with memory function)
PUSH dimming synchronization Parallel: 15 units Max. Series: 25 units Max.
Weight 140±5g
Life 5 years @Ta 100% load
Note: All parameters are tested at the input voltage of 230Vac and 25 degree environment unless specified.
Dimension (Unit:mm)
25W CC 150mA to 550mA DALI2 dimmable slim led driver with 5 years warranty 0
Wiring Diagram
25W CC 150mA to 550mA DALI2 dimmable slim led driver with 5 years warranty 1 25W CC 150mA to 550mA DALI2 dimmable slim led driver with 5 years warranty 2
1) PUSH Dimming wiring diagram
25W CC 150mA to 550mA DALI2 dimmable slim led driver with 5 years warranty 3
2) DALI wiring diagram
25W CC 150mA to 550mA DALI2 dimmable slim led driver with 5 years warranty 4
3) 0-10V dimming wiring diagram
25W CC 150mA to 550mA DALI2 dimmable slim led driver with 5 years warranty 5
Current Gear Setting
Current gear setting 1 2
550mA (9-45Vdc) ● ●
350mA (9-48Vdc) ● ○
150mA (9-48Vdc) ○ ○
ON/OFF & Description of Dimming Operation
  • A. Short press the PUSH switch (0.1s-1s) to turn on/off
  • B. Press and hold (1s-8s) for dimming (2-100% range)
  • C. PUSH dimming has memory function
  • D. Dimming synchronization: hold PUSH switch >15s
  • E. DALI dimming mode: 0-100% range via DALI host
Important Notes
  • Connect load before powering on to prevent damage
  • Output maintains residual voltage (~3 minutes) after power off
