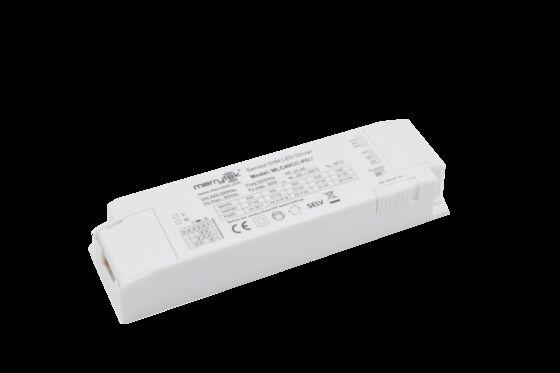

40W Isolated Sensor DIM LED Driver with Color Temperature Selection, 900-1050mA

  • 40W Isolated Sensor DIM LED Driver with Color Temperature Selection, 900-1050mA
مكان المنشأ شنتشن ، الصين
اسم العلامة التجارية Merrytek
إصدار الشهادات CE、UKCA、SAA
رقم الموديل MLC40CC-PD2
الحد الأدنى لكمية 100pcs
الأسعار قابل للتفاوض
تفاصيل التغليف لوح تغليف كيس PE، كرتون (K=A)
وقت التسليم 1 ، عينة وطلب صغير: في غضون 5 أيام عمل بعد تلقي الدفع الخاص بك. 2 ، الجزء الأكبر: 3-4 أسابيع بعد است
شروط الدفع ر/ر
القدرة على العرض 10000 pcs/month

اتصل بي للحصول على عينات مجانية وكوبونات

واتس اب:0086 18588475571

(وي تشات): 0086 18588475571

سكايب: sales10@aixton.com

إذا كان لديك أي قلق ، فنحن نقدم مساعدة عبر الإنترنت على مدار 24 ساعة.

x
تفاصيل المنتج
غضب التوتر 220-240 فولت تيار متردد، 50 هرتز / 60 هرتز طاقة الاستعداد .50.5W （لا يوجد تجهيز برأس تقسيم الاستشعار）
عامل القوة ≥0.95 (الحمل الأقصى 230 فولت) تيار inrush ≤30A （100us نصف توتر）@230V AC
وضع العمل نسخة تصنيف IP IP20
حياة 5 سنوات ضمان@TA50/TC70 ℃ ， 230V تحميل كامل
إبراز

40W isolated LED driver,sensor DIM LED driver with warranty,LED driver color temperature selection

,

sensor DIM LED driver with warranty

,

LED driver color temperature selection
اترك رسالة
منتوج وصف
40W Isolated Sensor DIM LED Driver with Color Temperature Selection, 900-1050mA
Product Features
  • Isolated two-stage circuit frame, full dimming and flicker-free
  • Support DIP switches to set the current gear; Slide Switches to select the CC/CW/WW
  • Support 8.5V auxiliary power supply, with sensing split head can achieve integrated sensing function
  • Equip with PWM dimming control port
  • Suitable for various microwave sensors or wireless smart modules
Parameters
Input
Rated voltage 220-240V AC 50Hz/60Hz
Stand-by power ≤0.5W(No Equip with sensing split head)
Surge 1KV(L/N,EN61000-4-5)
Power factor ≥0.95 (230V Max load)
Input current ≤0.23A @230VAC full load
Inrush current ≤30A(100us half-current)@230V AC
Working efficiency ≥86% (230V Max load)
Output
Working mode CC
Type of load LED
Flick ≤5%
Constant current accuracy Constant current accuracy ±5%
Auxiliary driver parameters 8.5 ±0.5VDC Current: 100mA Max
No-load output voltage 60VDC Max
Full load power 40W Max
Load current 900mA/950mA/1000mA/1050mA
Load output voltage range 900mA / 20 -42VDC
950mA / 20-45VDC
1000mA /20-40VDC
1050mA /20-38VDC
Abnormality Protection Requirements
Protection mode Input overvoltage protection; Input no-load protection no-load protection Input short circuit protection
Environmental Requirements
Operating temperature Built-in:-25…+60℃
Tcase-max 85℃
Storage temperature/humidity -40℃…+80℃ Humidity: ≤85% (non-condensation)
Certificate Standards
Certificate CE,UKCA,SAA
Environmental requirement RoHS2.0, Reach requirement
Safety standards(LVD) EN61347-1, EN61347-2-13
EMC standards EN55015, EN61547, EN61000-3-2, EN61000-3-3
Withstand voltage Primary to secondary: 3.75KVAC
IP Rating IP20
Product Category Class II
Others
Wiring method Press terminal, wire diameter:0.5-1.0mm2
Installation Built-in
Package PE bag clapboard, carton(K=A)
Net weight 135 ±5g
Lifetime 5years warranty@Ta50/TC70℃,230V full load
Product Information
Wiring and function
40W Isolated Sensor DIM LED Driver with Color Temperature Selection, 900-1050mA 0
Dimension (Unit:mm)
40W Isolated Sensor DIM LED Driver with Color Temperature Selection, 900-1050mA 1
Parameter Curve
40W Isolated Sensor DIM LED Driver with Color Temperature Selection, 900-1050mA 2 40W Isolated Sensor DIM LED Driver with Color Temperature Selection, 900-1050mA 3
Life Time Curve
40W Isolated Sensor DIM LED Driver with Color Temperature Selection, 900-1050mA 4
Output Current Setting
Output current Voltage range S1 S2
1050mA 20-38V ON ON
1000mA 20-40V ON -
950mA 20-42V - ON
900mA 20-42V - -
Initialization

After power-on, it is half bright, and after self-test, it enters the 0-10V port voltage setting brightness (suspended for full bright).

Default Setting

Adjust the corresponding current gear according to the order or customer demand.

Application Notice
  • Please use this product in accordance with the specifications. Failure may occur if the product is used beyond the use conditions.
  • The product should be installed by a professional electrician. Please turn off the power before installing, wiring, changing the setting of the DIP switches.
  • The load LED string must be connected first, and then turn on the input power, otherwise it may damage the LED string.
  • After the LED drive input is powered off, there will be residual voltage at the output end, which can be maintained for about 3 minutes.
